2500pcs/hr Full Automatic PET Bottle Blow Molding Machine

FOB Reference Price:Get Latest Price
$20,000.00 - $28,000.00 / Set | 1 Set/Sets (Min. Order)
Bottle Volume (ml):
200-2500
Production Capacity (BPH):
2500
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 years
After-sales Service Provided:
Field maintenance and repair service, Field installation, commissioning and training, Free spare parts, Video technical support, Online support
Place of Origin:
Jiangsu, China
Brand Name:
Grandee
Application:
Bottle
Plastic Processed:
PET
Condition:
New
Dimension(L*W*H):
2100X1700X2200mm
Certification:
CE ISO
Voltage:
380V/3PH/50HZ
Automation:
Automatic
Blow Moulding Type:
Stretch Blow Moulding
Power (kW):
25
Key Selling Points:
High Safety Level
High Pressure Valve Brand:
AirTac
Rotary Cylinder Brand:
FESTO
PLC Brand:
Schneider
Weight (KG):
2500
After Warranty Service:
Video technical support, No service, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Egypt, Canada, Viet Nam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Showroom Location:
Egypt, Canada, Turkey, United States, Viet Nam, Philippines, Brazil, Saudi Arabia, Indonesia, Pakistan, Mexico, Russia, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia, Australia
Power(W):
25kw
Automatic:
Yes
Product Name:
2500pcs/hr Full Automatic PET Bottle Blow Molding Machine
Bottle type:
round , square bottle or can
Electrical brand:
Mistubishi Schnieder Airtac
Capacity:
2500bph for 500ml PET bottle
Numbers of Cavity:
2 Cavity
High air compressor:
1.2m3/30KG
Machine type:
Full Automatic
Max bottle diameter:
35-220mm
Applicable Industries:
Manufacturing Plant, Food & Beverage Shops
Supply Ability
Supply Ability:
5 Set/Sets per Month Automatic PET Bottle Blow Molding Machine
Packaging & Delivery
Packaging Details
PE fim wrapping, Wooden Case Packing
Port
Shanghai Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 40 To be negotiated

2500pcs/hr Full Automatic PET Bottle Blow Molding Machine

Product Description



GD-A2 Full automatic blow molding machine is suitable for producing PET/PE and PP plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

Features of main body:

1). Stable performance with advanced PLC.

2). Automatic preform conveyer to save human cost.

3). Preform self-rotation and infrared pre-heater revolution assure the even distribution of heat, which improve the bottle shaping rate, increase the production.

4). High adjusting performance to enable preheat the preforms perfectly by adjust the voltage control area in the PLC, which could adjust the temperature of the infrared lights in the pre-heater, and keep the proper temperature and humidity invariable.

5). High safeties with security automatic-locking device in each mechanical action, which will make the production into a perfect safe environment, in case of the breakdown in certain procedure.

6). Introduce the FESTO air cylinder to avoid contamination and noise.

7). Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.

8). Strong clamping force with high pressure and double crank links to lock the mould.

9). Two ways of operating: automatic and manual.

10). Safe,reliable and unique design of the position of valve to make the pneumatic diagram in the machine easier to understand.

11). Low cost,high efficiency,easy operation and maintenance etc, profited from the fully automatic technological process.

12). Ideal cooling system make the finished bottles without any flaws.

13). Easy for you to install,test and start up.

14). Low rejection rate: less than 0.2 percent.

Operation:

The standard operation of GD-A2 stretch blow molding machine includes four steps as follow

Step 1. Put the preform into preform container and the conveyor will take the preform to orientation units automatically.

Step 2. Load the preform at neck up to preform holder, and then preform is conveyed into baking tunnel.

Step 3. After heating, preform is conveyed into the blow station, then close the mold, stretch and blow under low pressure and high pressure, exhaust, open the mold.

Step 4. The finished bottle is taken off by automatic discharging system



Main machine :



2 Cavity bottle blowing mold





Heating lamp in the heating oven



PET Prefrom from preform loader into blowing machine

Main technical parameter:



Model

GD-A2

Productivity

Depend on bottle design

2500PCS/H

Product type

Body diameter

20mm-100mm

Height

50mm-350mm

Neck diameter

15mm-38mm

Mold

Cavity

2cavities

Mold thick

240mm

Mold

500*500mm

Main machine power

Electrical source power

380v 3Phase /220v 3Phase  50/60HZ

Power

25kw

Really use power

6kw

Air source

LP air compressor

1.2m3/min 1.2MPa 1set (7.5KW)

HP air compressor

1.2m3/min 3.0MPa 1set (each set 15KW)

Air dryer

1.2m3/min 3.0MPa 1set

Cooling water

Cooling water

10L/min

Size

L*W*H

1908*1280*1920mm

Weight

2000kg

Auxiliary equipment(preform unscrambler)

L*W*H

276*106*186mm

Weight

250kg

Resin available



PET

Related Product

Company Information

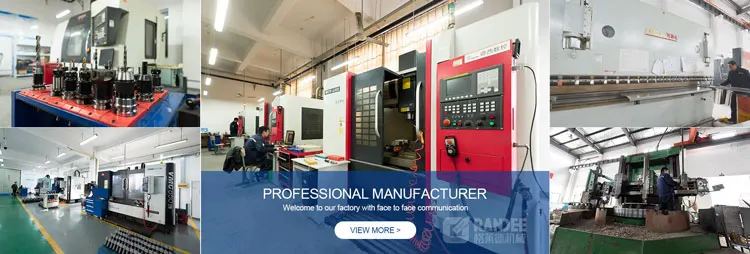

 Production Processing Center and workshop
